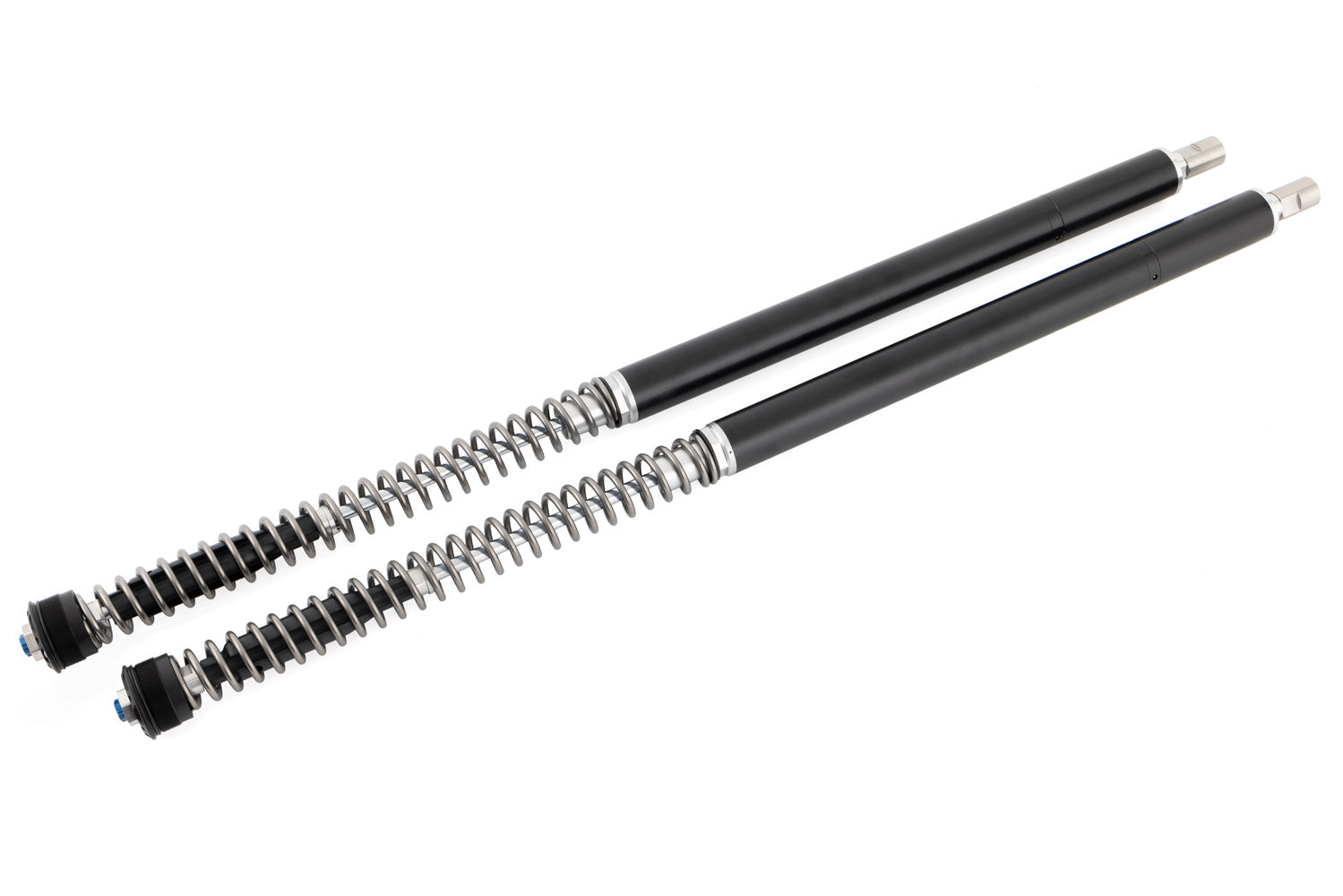

Wunderlich Suspension Cartridge C4

Facts and product features of the Wunderlich Suspension powered by TracTive C4 cartridge set

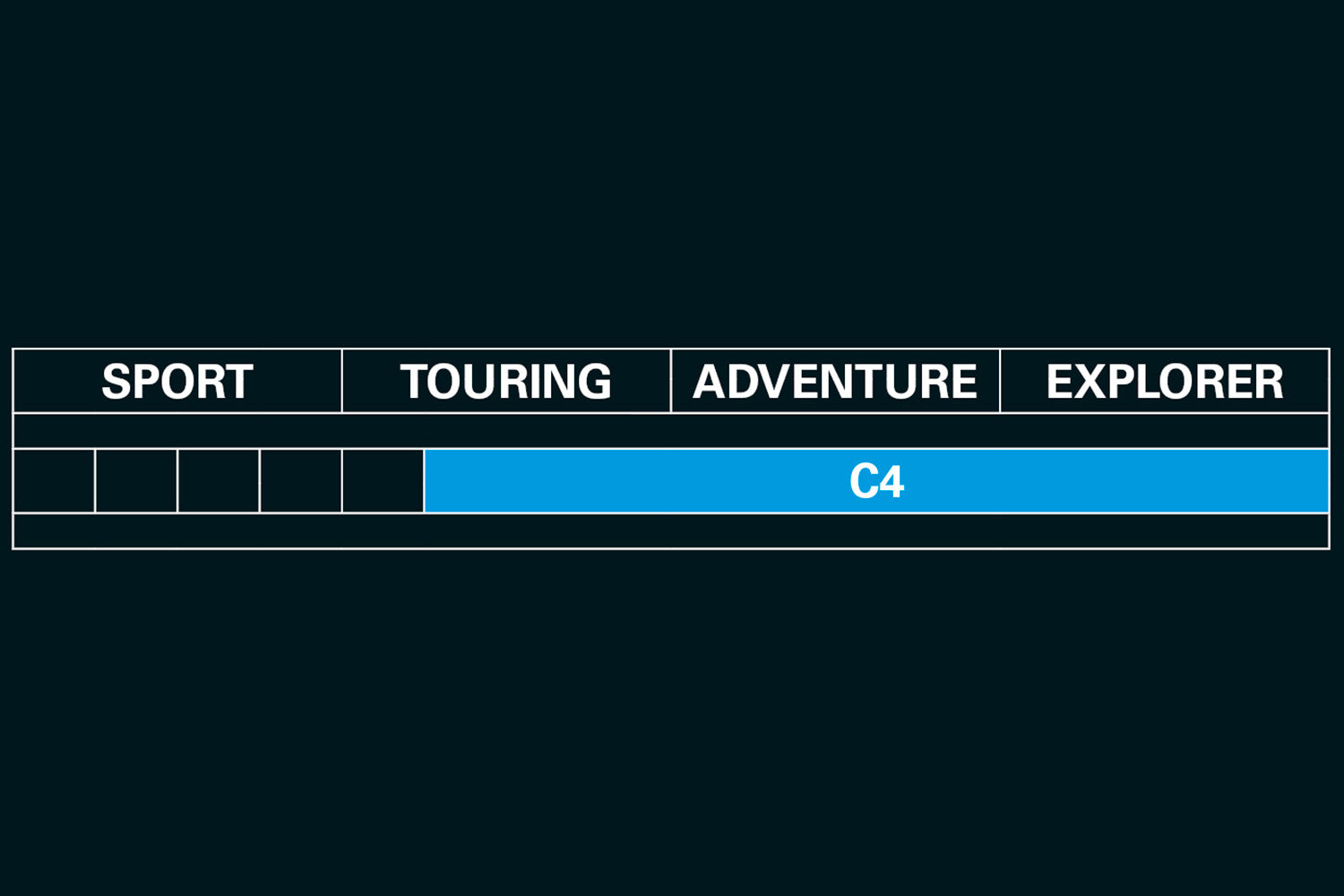

Latest-generation high-performance cartridge set as an upgrade or replacement for the standard suspension. Developed for the demanding requirements of ambitious adventure riders who frequently ride off-road, touring riders who regularly travel with high payloads, and riders seeking additional safety reserves. Featuring Hydro-Stop, a second damping stage that reduces the risk of bottoming out.

We individually select the spring rate based on your personal riding profile specifications.

• Damping characteristics
• Our cartridge sets are developed specifically for each vehicle and its intended use, delivering high performance and impressive reserves
• The balanced, sensitive damping behaviour of our suspension components ensures neutral, predictable handling and strengthens rider confidence, enhancing overall riding enjoyment
• The cartridges impress with excellent, transparent feedback, optimising tyre contact with the road surface, wheel guidance and directional stability while reducing tyre wear

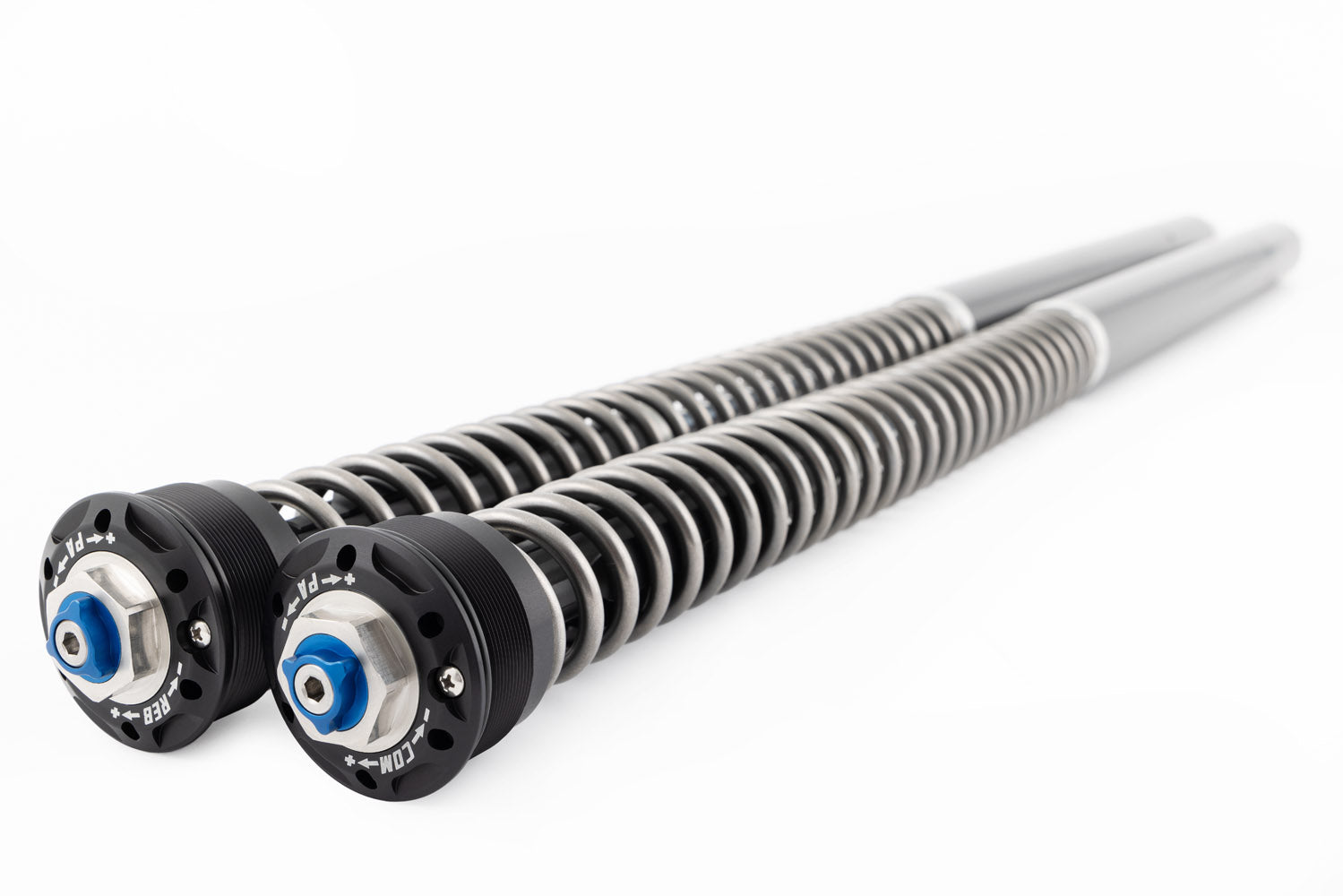

• Rebound and compression damping adjustment with 18 clicks allows precise individual fine-tuning using the suspension tool
• To achieve optimum, sensitive response behaviour,
• the oil channels are generously dimensioned to minimise oil flow resistance
• large-diameter pistons are used (35 mm pistons – the largest on the market)
• as well as low-friction seals and special shim stacks
• The cartridge set features a so-called Hydro-Stop to prevent harsh bottoming out, in which a second integrated damping piston forms an additional damping stage at high compression speeds
• The rebound and compression adjustment options in combination with the Hydro-Stop reduce the risk of overloading the fork and frame while simultaneously increasing comfort and safety – not only off-road
• The closed aluminium cartridge housings support the system’s thermal stability and performance through optimal heat dissipation
• The generously dimensioned oil volume ensures
• a low, optimal operating oil temperature,
• which not only guarantees stable high-level performance,
• but also extends the service life of both damper and oil

• Spring characteristics and preload

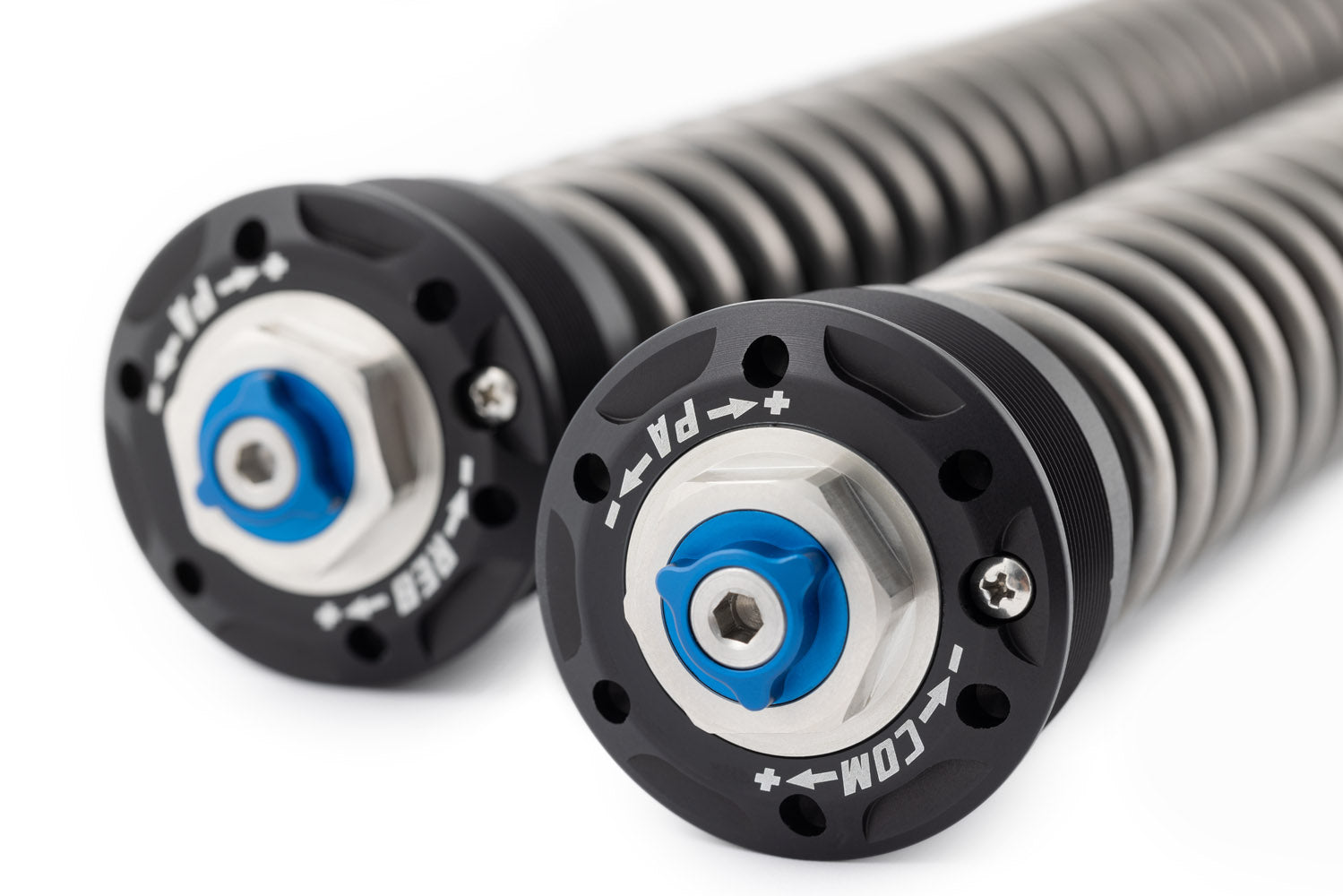

• Manual spring preload: the preload can be adjusted using the supplied suspension tool
• The wide adjustment range compensates for a broad variety of load conditions

• Tuning
• Wunderlich Suspension for the highest demands

• Customisation
• We individually select the spring rate based on your personal riding profile specifications: after selecting your cartridge set, you simply define your personal specifications during the ordering process – they form the basis for selecting the spring that perfectly suits you

• Maintenance
• Each cartridge can be fully and professionally serviced at the Wunderlich Suspension Center

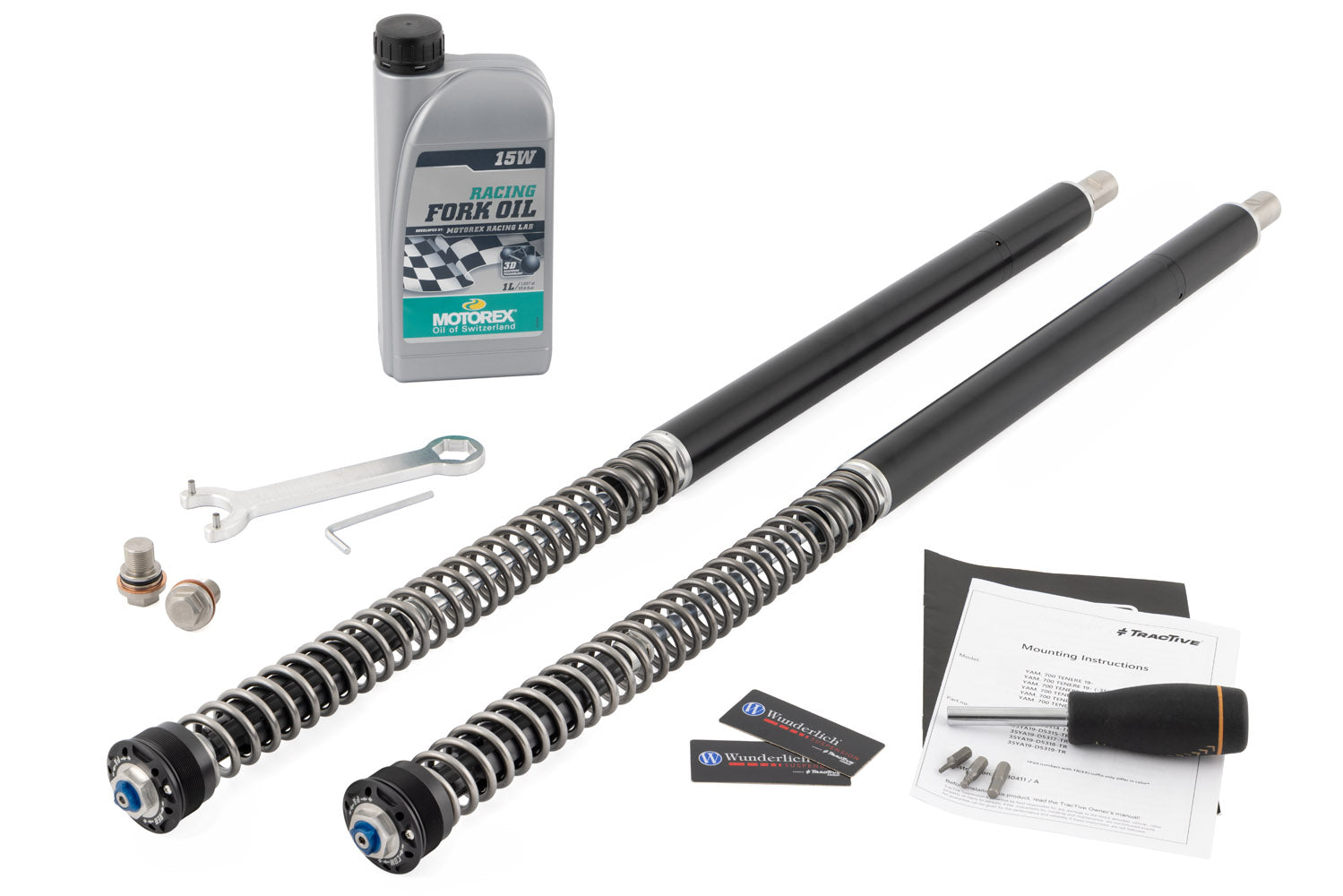

• The suspension tool is included in the scope of delivery

Technical data

• Material
• The cartridge housings are precisely manufactured from high-quality aluminium
• Special features
• Hydro-Stop to reduce the risk of bottoming out
• Closed cartridge system
• Build quality
• We exclusively use highly durable components such as micro-machined, inductively hardened, heat-treated 42CrMo piston rods, premium-quality bearings, stainless steel bushings and low-friction seals
• Dimensions
• Piston diameter: 35 mm
• Piston rod diameter: 10 mm
• Spring preload adjustment
• Manual
• Installation location
• Front fork

Your Wunderlich advantages

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Tested by Wunderlich
• Made in Europe
• 5-year warranty when observing the 24-month service intervals
• With ABE*

*Testing by the technical service has been successfully completed. Finalisation of the administrative process and issue of the ABE is expected shortly. We will send you the ABE automatically.
