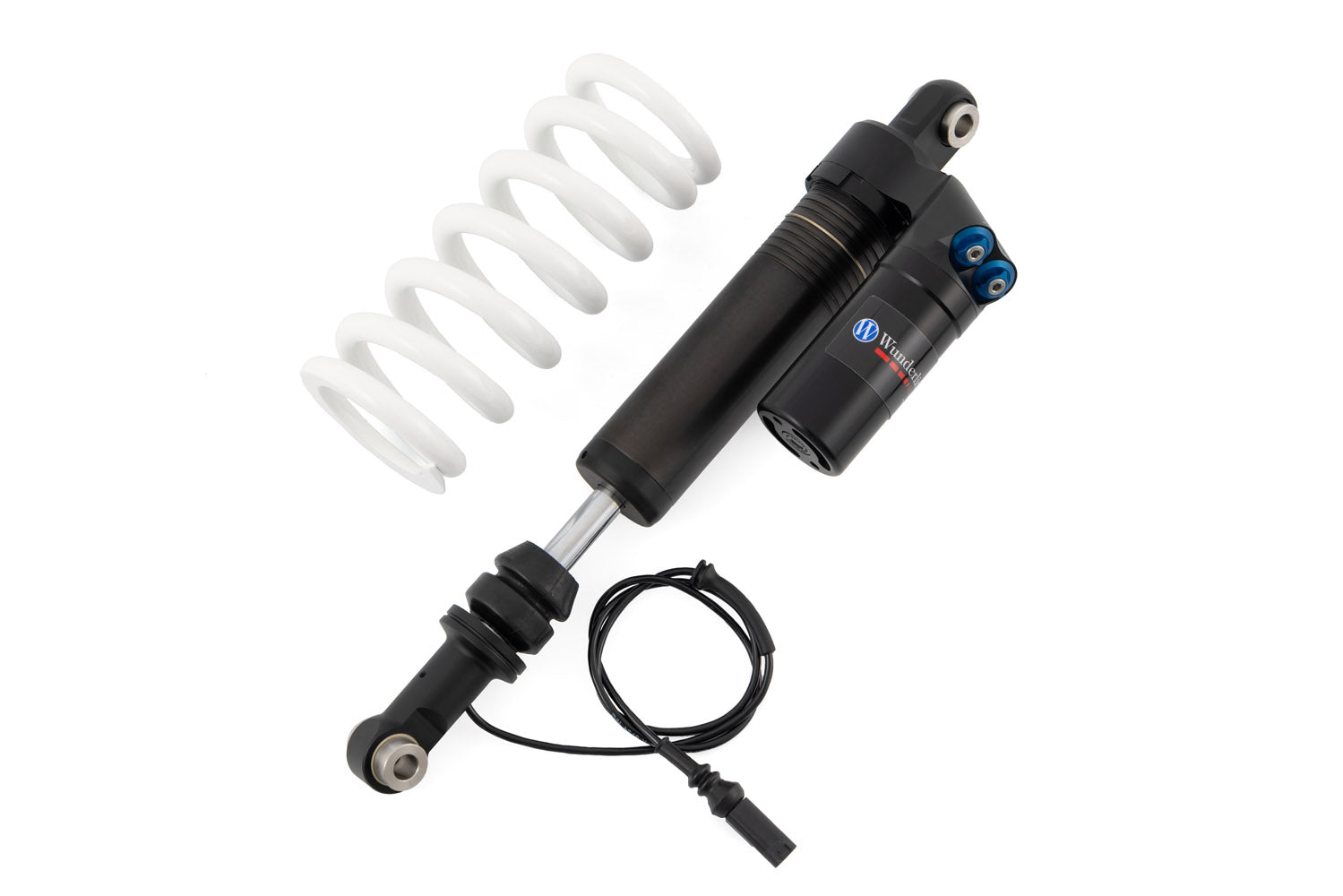

Wunderlich Suspension Shock absorber eS2 PRO

Facts and product features of Wunderlich Suspension powered by TracTive eS2 PRO shock absorbers

The eS2 shock absorber line is an integrated, modular retrofit solution. Apart from the standard electric preload adjustment (EPA), all other components are replaced by high-performance TracTive components.

For extreme use: the PRO version. Extra-reinforced, integrated, adaptive, electronically regulated and controlled high-performance shock absorber of the latest generation, as an upgrade or replacement for the standard suspension. Developed for the highest demands of discerning adventure and touring riders, and for those who want extra safety reserves.

This shock absorber’s exceptional performance is impressive. It connects electronically with the motorcycle via plug & play without further adjustments. Selection and adjustment of the desired riding mode is comfortably carried out via the handlebar controls.

We select the spring rate individually using your personal riding profile specifications.

• Damping characteristics
• High-performance, vehicle- and purpose-specific design with impressive reserves
• Balanced, sensitive damping behaviour ensures neutral, predictable handling and rider confidence
• Excellent feedback, optimised tyre grip, wheel guidance and directional stability, reduced tyre wear
• Equipped with patented TracTive DDA (Dynamic Damping Adjustment) valve for dynamic damping and superior performance
• Fully compatible with the motorcycle's ECU and processes its signals
• Wider adjustment range and significantly faster response (6–10 ms) than stock suspension

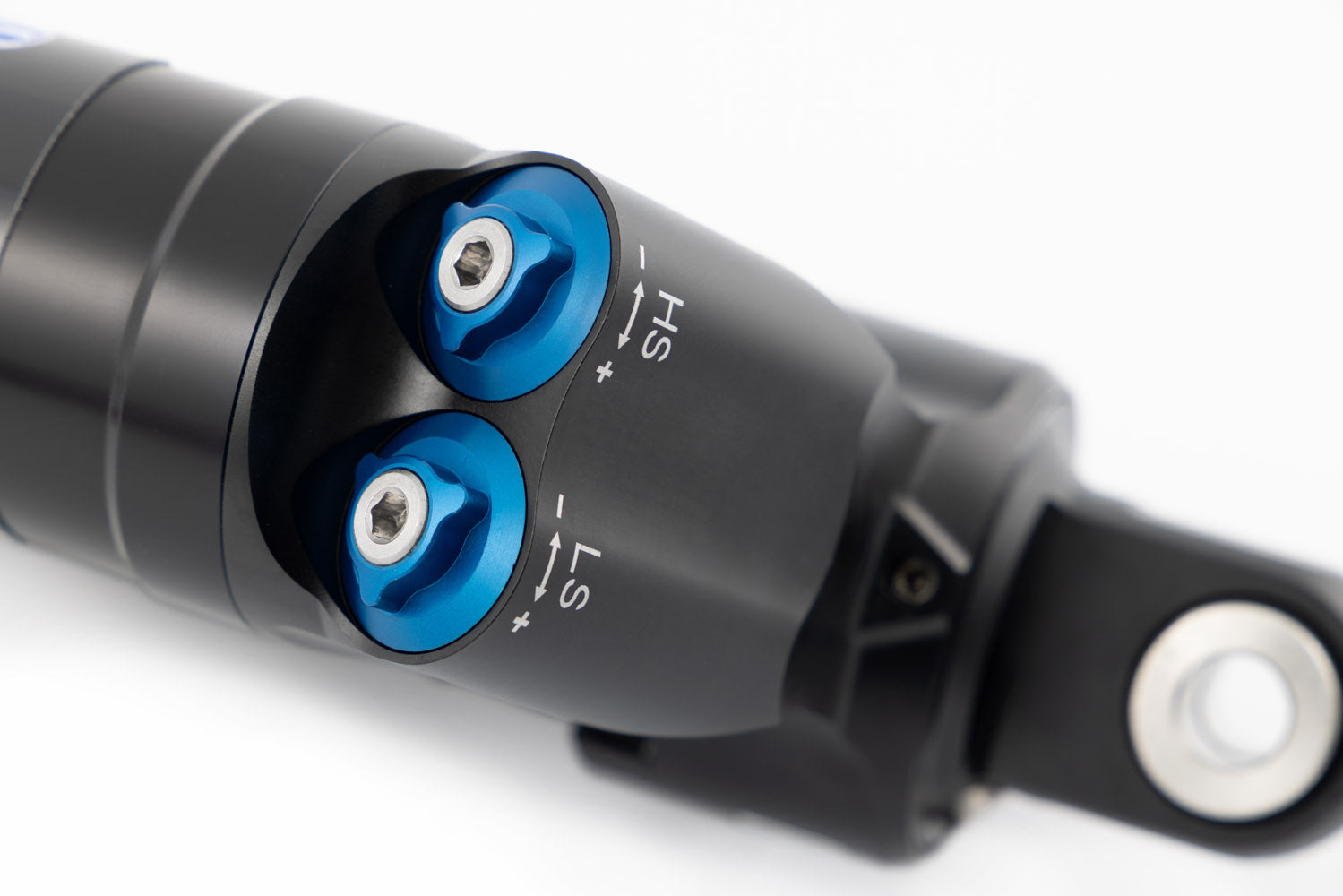

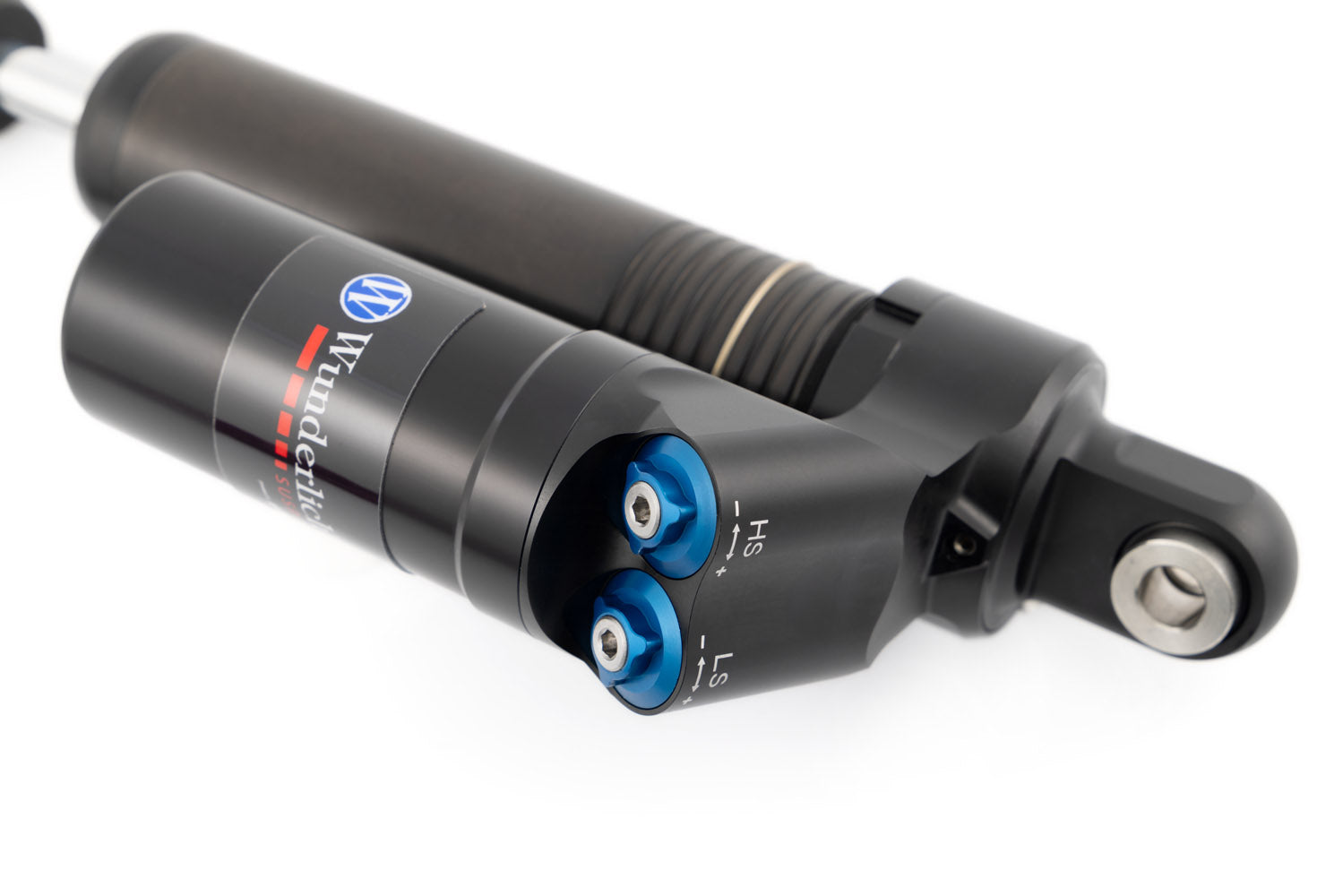

• High- and low-speed compression adjustment for individual damping tuning
• Ideal for comfort, safety, and reduced frame stress
• For optimal, sensitive response:
• Generously dimensioned oil channels
• 46 mm piston diameter
• Low-friction seals and special shim stacks
• Closed system with external forged aluminium reservoir for thermal stability
• Large oil volume and cooling surface ensure low operating temperature and long service life

• Spring properties and preload
• Integrated electric preload (EPA); all other parts upgraded with TracTive high-performance components
• Standard EPA operation remains unchanged

• PRO
• Optimised for extreme use: reinforced construction, improved response with low-friction seals
• Steel shock body
• Stainless steel bushings
• Special low-friction seals with back-up ring

• Tuning
• Custom Wunderlich tuning for demanding adventure and touring riders

• Customisation
• Spring rate selected based on personal riding profile during the ordering process

• Maintenance
• Serviced professionally at Wunderlich Suspension Center

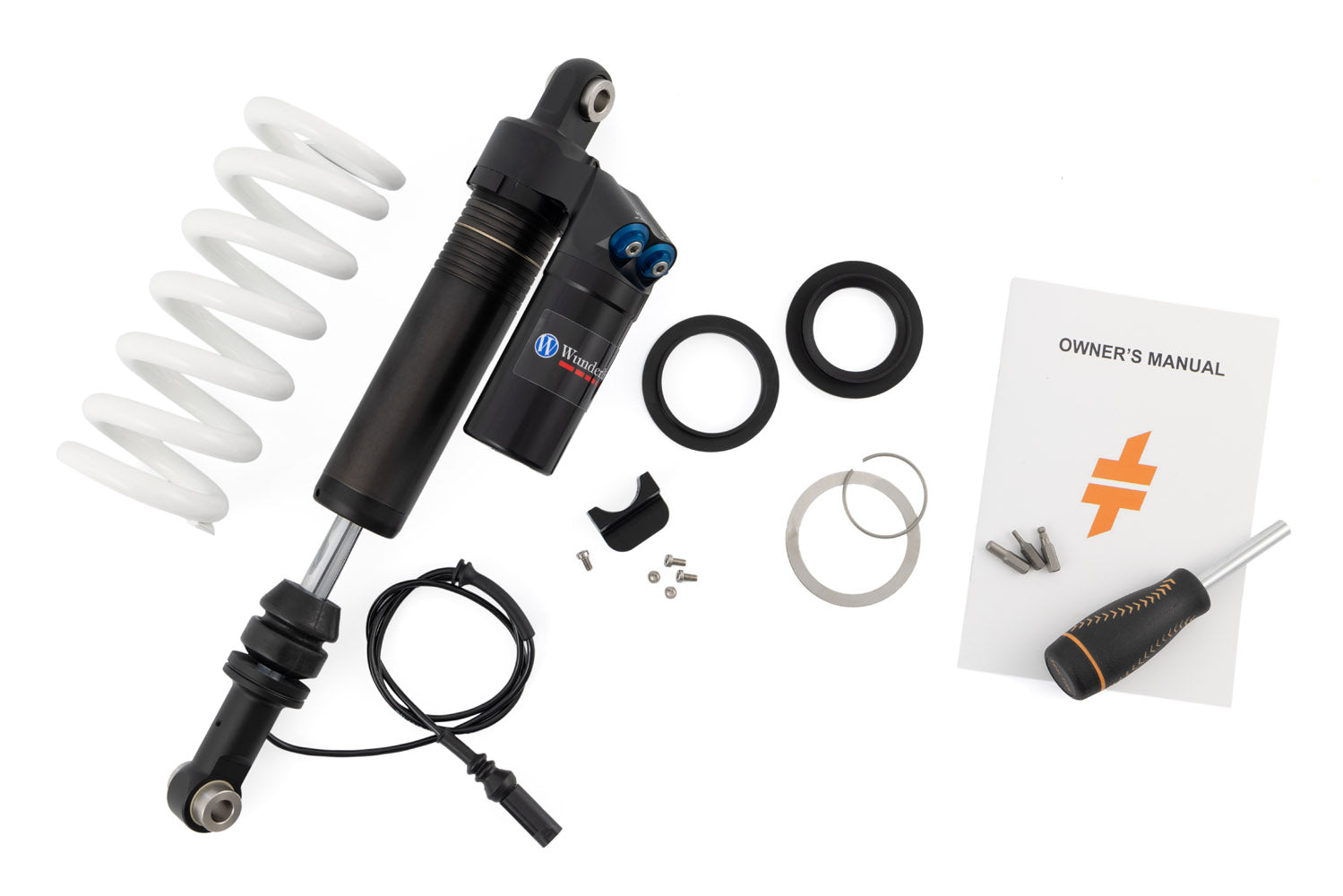

• Suspension tool included

Compatibility note

On Euro 5 models, the original shock splash guard cannot be reused with this shock. Please order the BMW splash guard set (BMW part no. 33548532478).

Technical data

• Material
• Precision-machined high-grade steel housing
• Special features
• Patented TracTive DDA valve
• PRO specifications
• Closed system
• Build quality
• High-strength components: 42CrMo rods, quality bearings, stainless bushings, low-friction seals
• Dimensions
• 46 mm piston diameter
• 16 mm piston rod
• Preload adjustment
• Electronic via standard EPA
• Installation position
• Rear swingarm

Your Wunderlich advantages

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Tested by Wunderlich
• Made in Europe
• 5-year warranty with 24-month maintenance intervals
• With ABE
