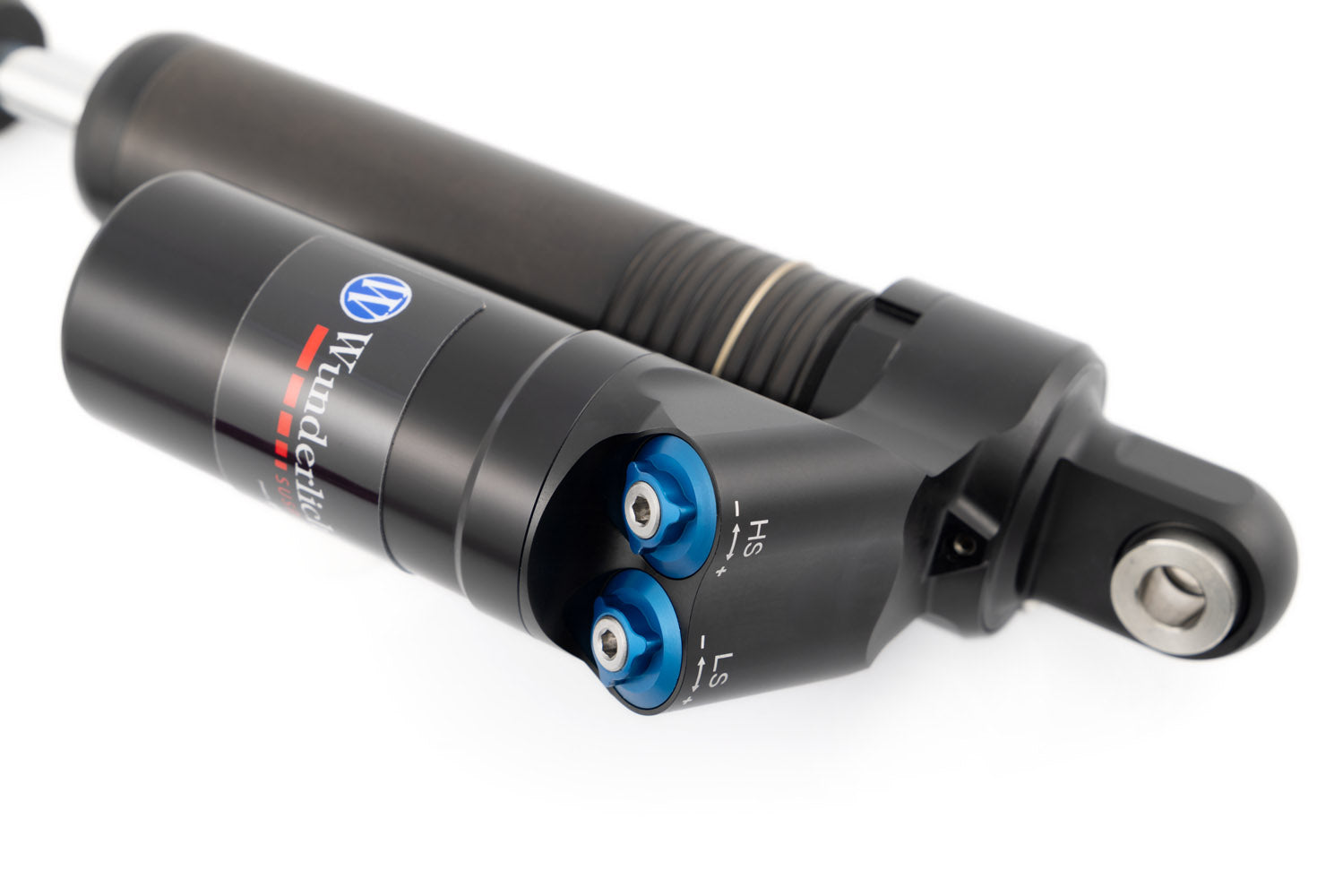

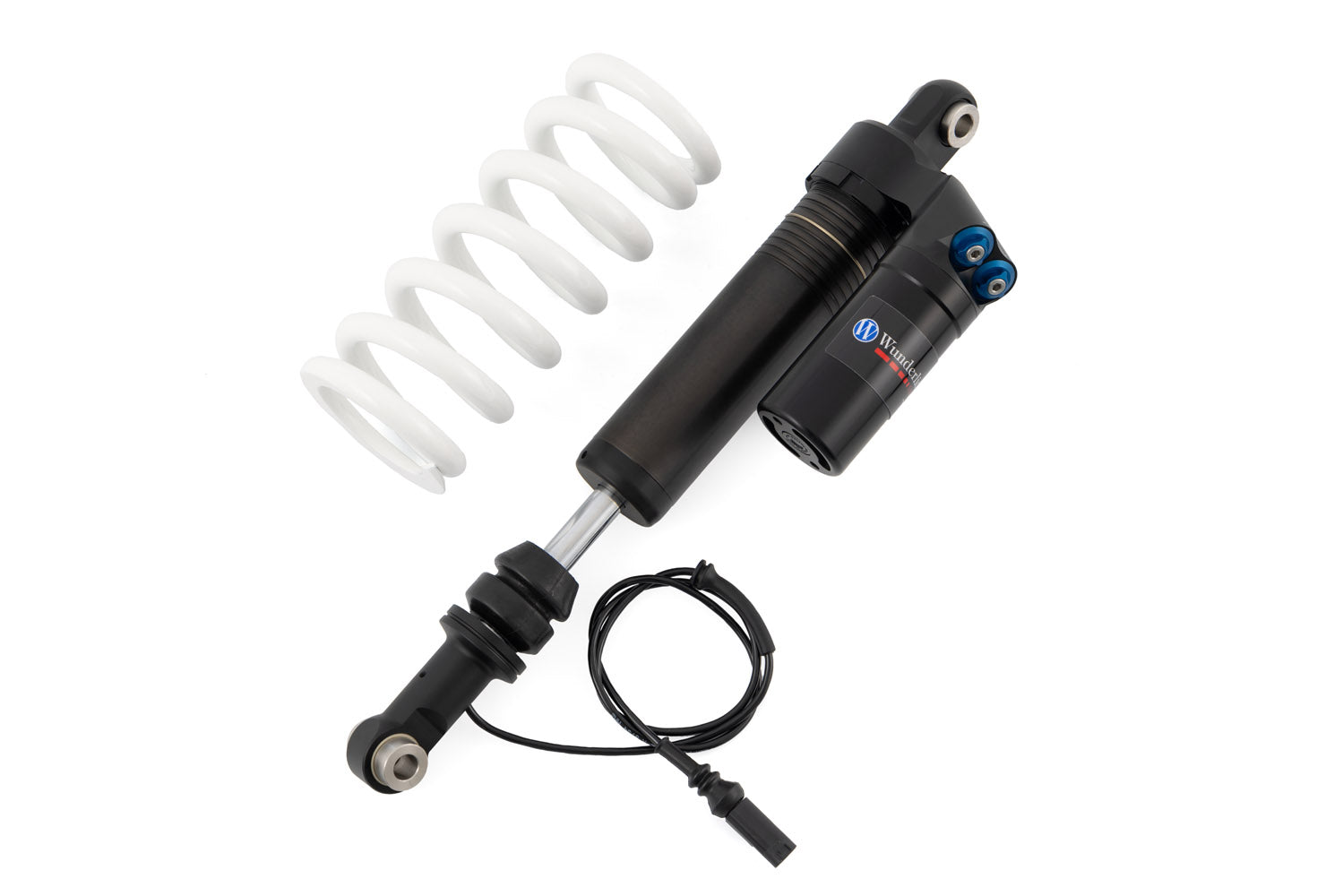

Wunderlich Suspension Shock absorber eS2 PRO
Facts and product features of Wunderlich Suspension powered by TracTive eS2 PRO shock absorbers
The eS2 shock absorber line is an integrated, modular retrofit solution. Apart from the standard electronic preload adjustment (EPA), all other components are replaced by TracTive high-performance parts.
For extreme use: the PRO version. Extra reinforced, integrated, adaptive, electronically regulated and controlled high-performance shock absorber of the latest generation – as an upgrade or replacement for the standard suspension. Developed to meet the highest demands of adventure and touring riders as well as those seeking added safety reserves.
The outstanding performance of this shock absorber is impressive. It connects electronically with the motorcycle via plug & play without any further adjustments. The selection and adjustment of the desired riding mode is done conveniently via the handlebar controls.
We select the spring rate individually based on your personal riding profile specifications.
- Damping characteristics
- Specially developed for each vehicle and purpose, offering high performance and impressive reserves
- Balanced, sensitive damping ensures neutral, predictable handling and builds rider confidence
- Outstanding feedback, improved traction, wheel control, and reduced tyre wear
- Equipped with the patented TracTive DDA (Dynamic Damping Adjustment) valve for top-notch performance
- Fully compatible with the motorcycle’s ECU, interpreting its control signals
- Wider adjustment range and faster response time (6–10 ms) compared to stock suspension

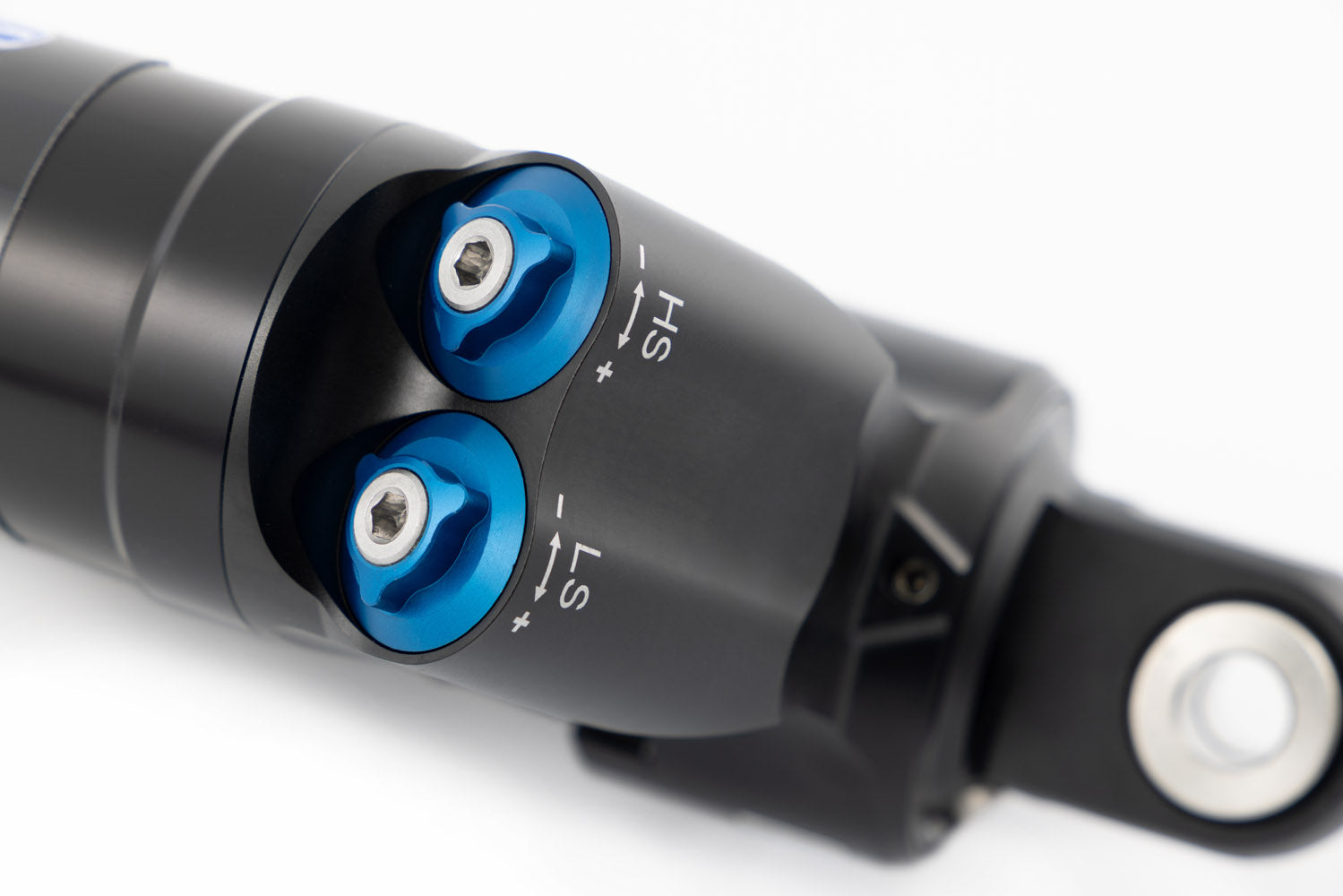

- Individual damping adjustment with high- and low-speed compression settings
- Meets the highest demands of adventure and touring riders – enhances comfort and safety, reduces chassis stress
- For optimum responsiveness:
- Generously sized oil channels to minimise flow resistance
- Large-diameter piston (46 mm)
- Low-friction seals and special shim stacks
- Closed system with external, forged aluminium reservoir for thermal stability
- Large oil volume and cooling surface ensure:
- Low, optimal oil temperature
- Stable top-level performance
- Extended lifespan of oil and damper
- Spring characteristics and preload
- Integrated electronic preload (EPA): all other components are upgraded with TracTive high-performance parts
- Operation of the standard EPA remains unchanged
- PRO
- The PRO shocks are the best choice for extreme use – even more robust with optimised response thanks to low-friction seals and components:
- Shock body made of steel
- Stainless steel bushings
- Special low-friction seals with additional sealing (back-up ring)
- Tuning
- Special Wunderlich Suspension tuning for demanding adventure and touring riders
- Customisation
- Spring rate is selected individually based on your riding profile during the ordering process
- Maintenance
- Every shock can be fully serviced by the Wunderlich Suspension Center

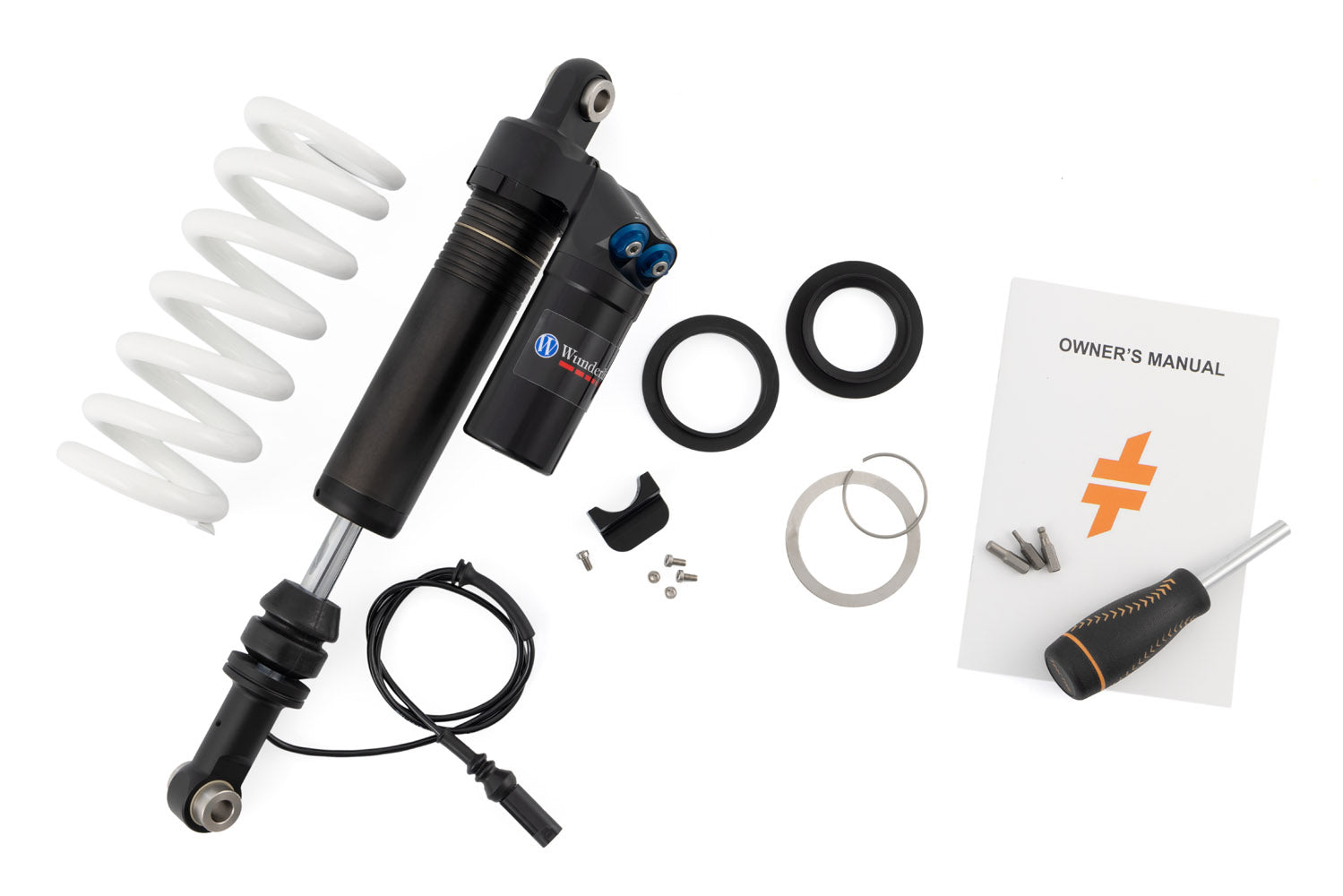

- Suspension tool included
Compatibility note
On all Euro 5 models, the original shock splash guard is not reusable with the Wunderlich Suspension by TracTive shock. Please order the BMW splash guard set (BMW part no. 33548532478).
Technical data
- Material
- Shock housings precisely manufactured from high-quality steel
- Special features
- Patented TracTive DDA damping valve with outstanding damping dynamics
- PRO specifications
- Closed system
- Build quality
- Only premium components: micro-machined, induction-hardened 42CrMo piston rods, top-grade bearings, stainless bushings, low-friction seals
- Dimensions
- Piston diameter: 46 mm
- Rod diameter: 16 mm
- Preload adjustment
- Electronically via standard EPA
- Mounting position
- Rear swingarm
Your Wunderlich advantages
- Wunderlich product. Small series. Handmade.
- Wunderlich design. Functional and integrated.
- Tested by Wunderlich
- Made in Europe
- 5-year warranty with 24-month service intervals
- With ABE
