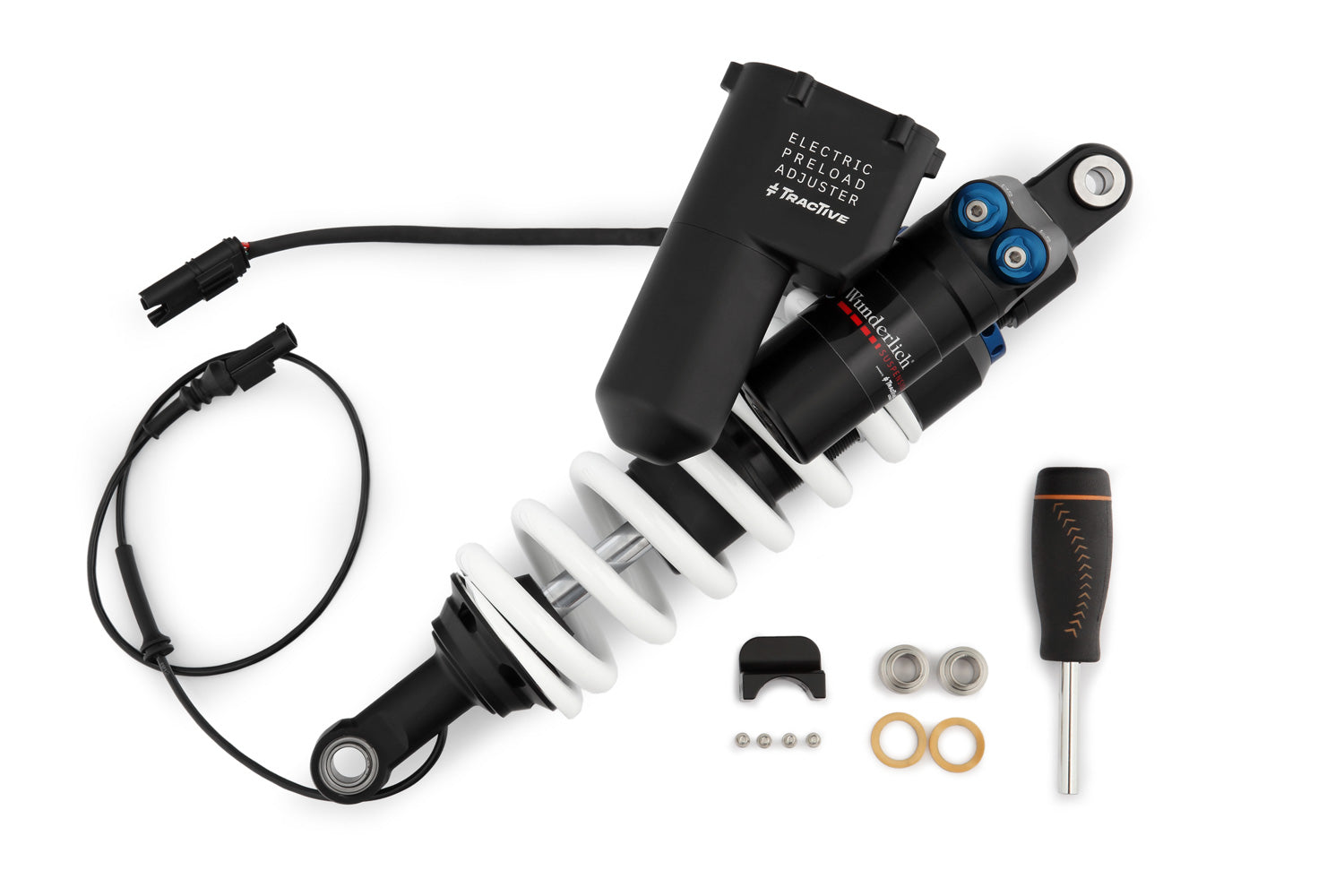

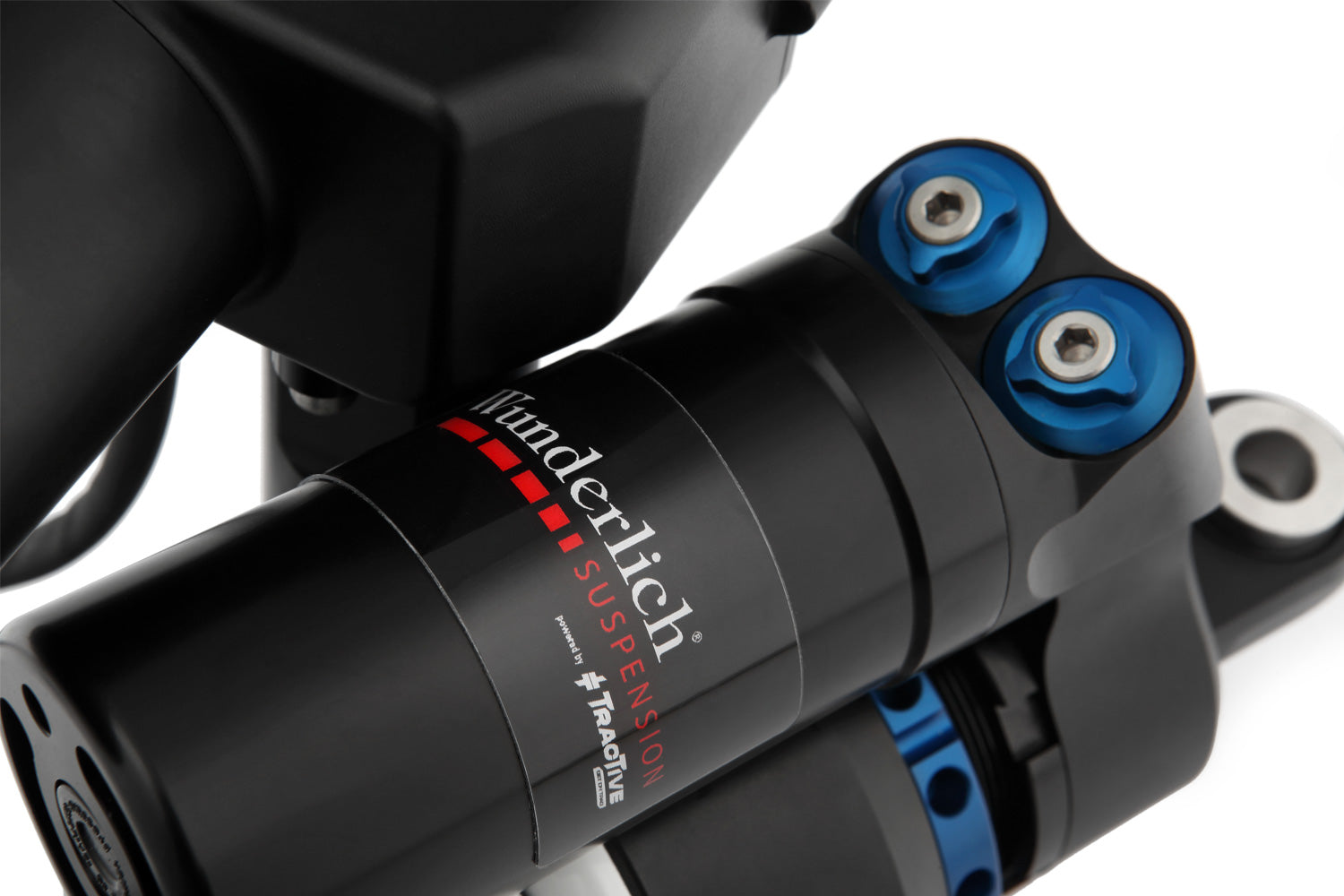

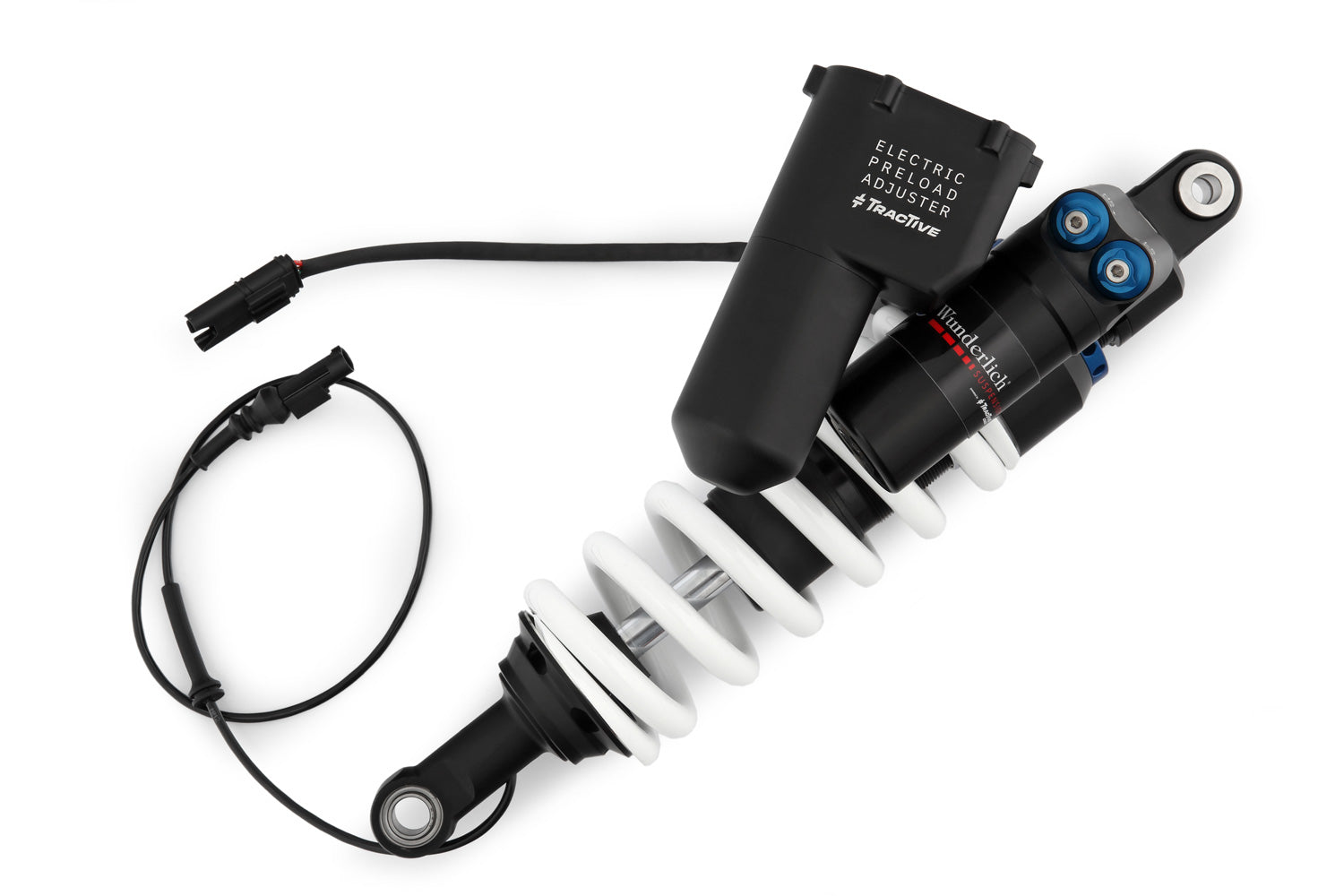

Wunderlich Suspension Shock absorber eS3 Adventure + EPA2

Facts and product features of Wunderlich Suspension powered by TracTive eS3-Adventure EPA2 shock absorbers

Electronically controlled and regulated high-performance shock absorber of the latest generation as an upgrade or replacement for the standard suspension. Developed for the highest demands of discerning adventure and touring riders, as well as for riders who want additional safety reserves. With electric spring preload EPA.

The exceptional performance of this shock absorber is convincing. It can be connected electronically to the motorcycle Plug & Play and without any further adjustments. The desired riding mode can be selected and adjusted conveniently and as usual via the handlebar controls.
We select the spring rate individually with the help of your personal riding profile specifications.

• The damping characteristics
• Our shock absorbers are developed specifically for the respective vehicle and intended use, offering high performance and impressive reserves
• The balanced, sensitive damping behaviour of our suspension components ensures neutral, predictable handling and supports confidence in your own motorcycle, thereby enhancing personal riding enjoyment
• The shock absorbers impress with excellent, transparent feedback; they optimise the tyre’s contact with the road surface, wheel control and directional stability, and reduce tyre wear
• The shock absorber is equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which impresses with its convincing damping dynamics and remarkable performance, taking responsiveness to a completely new level
• The DDA damping valve is fully compatible with the motorcycle’s control unit and processes its control signals
• Compared with the factory suspension, the DDA valve has a wider adjustment range and regulates significantly faster at 6-10 milliseconds

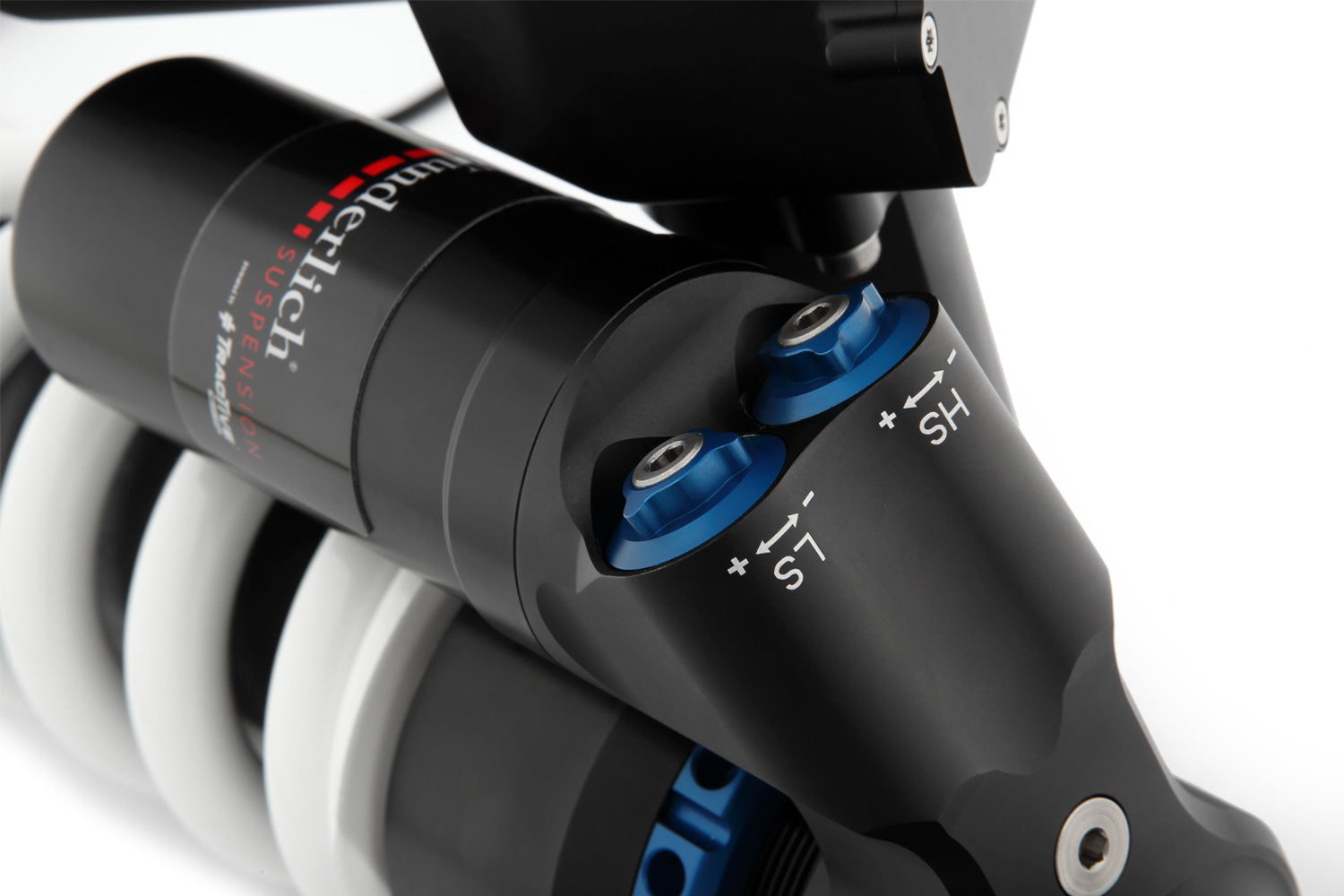

• Individual damping adjustment: The high-quality shock absorber features high- and low-speed compression damping adjustment, meaning the compression damping can be adjusted according to the speed of the compression movement, respectively the speed at which the damping piston moves during the process
• The DDA damping valve and the extensive options for individual compression damping adjustment meet the highest demands of sport and touring riders. They noticeably increase comfort and safety and can also help to reduce stress on the frame
• To achieve optimum, sensitive response,
• the oil channels are generously dimensioned to reduce the flow resistance of the oil to a minimum
• we use pistons with a large diameter (46 mm)
• as well as low-friction seals and special shim stacks
• These closed shock absorbers feature an external, forged aluminium reservoir, which supports the system’s thermal stability and performance through optimum heat dissipation
• The generously dimensioned oil volume and the large cooling surface ensure
• a low, optimum operating temperature of the oil,
• which not only results in stable performance at the highest level,
• but also in a longer service life for the damper and the oil

• The spring characteristics and preload
• Electric spring preload: The shock absorber is equipped with an encapsulated, highly robust stepper motor drive for adjusting the spring preload. Unlike many original electronic shock absorbers, the stepper motor inside the damper is optimally protected against the ingress of water or dirt. The robust spring preload adjustment unit withstands the toughest conditions
• The generous adjustment range can compensate for a wide range of load conditions

• Set-up

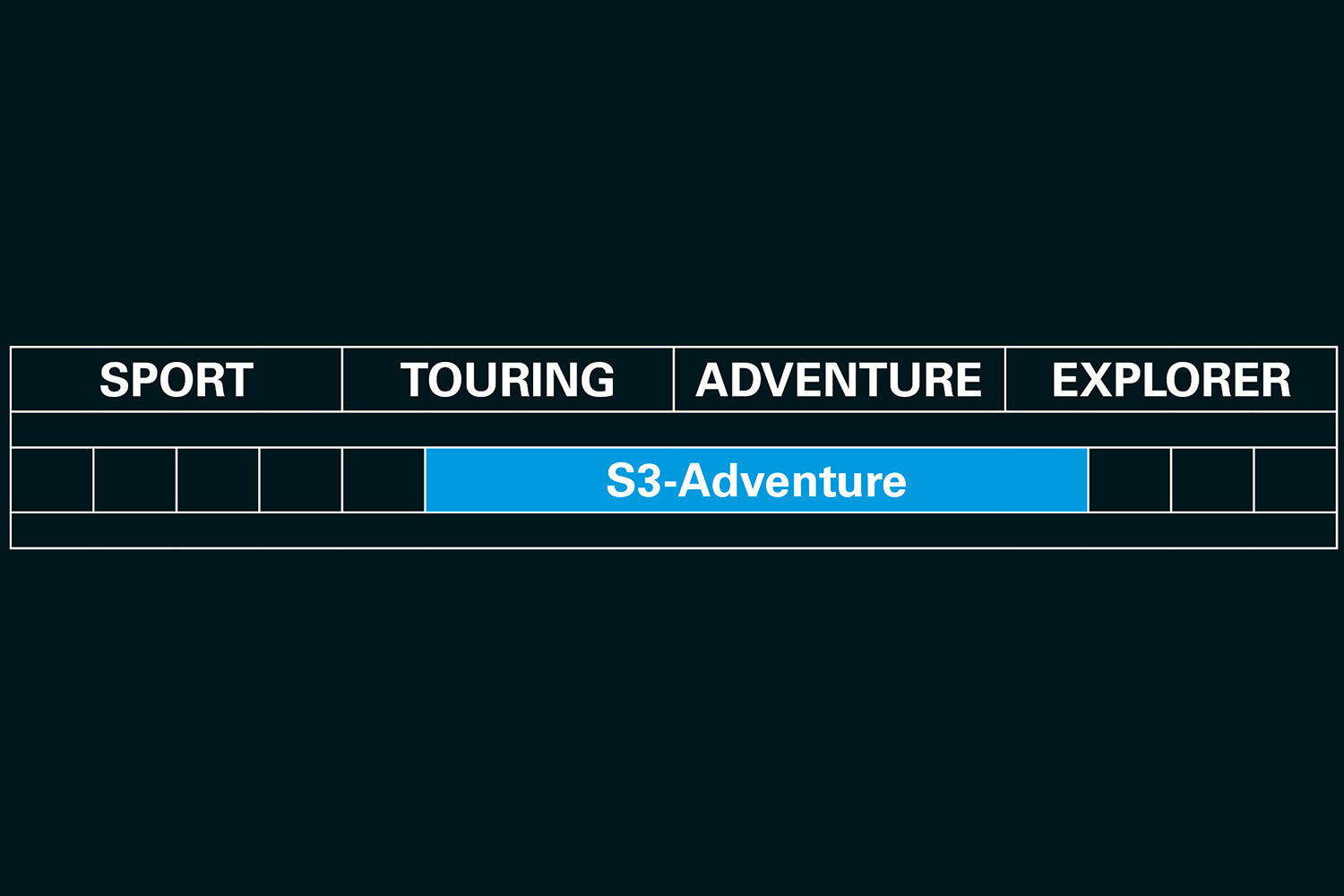

• Special Wunderlich Suspension set-up for adventure and touring riders who place the highest demands on their suspension

• Customisation
• We select the spring rate individually with the help of your personal riding profile specifications: Once you have selected your shock absorber, simply define your personal specifications during the ordering process – they form the basis for our selection of the spring that suits you

• Maintenance
• Every shock absorber can be fully serviced professionally at the Wunderlich Suspension Center
• The suspension tool is included in the scope of delivery

Technical data

• Material
• The shock absorber housings are precision-manufactured from high-quality aluminium
• Special features
• Patented TracTive DDA damping valve with outstanding damping dynamics
• Closed system
• Manufacturing quality
• We use only highly resilient components such as micro-machined, induction-hardened, tempered 42CrMo piston rods, bearings of the highest quality and stainless steel bushes, as well as low-friction seals
• Dimensions
• Piston diameter 46 mm
• Piston rod diameter 16 mm
• Spring preload adjustment
• Encapsulated electric spring preload (EPA)
• Installation location
• Rear swing arm

Your Wunderlich benefits

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Tested by Wunderlich
• Made in Europe
• 5-year warranty subject to compliance with the 24-month maintenance intervals
• with ABE*

*The tests at the technical service have been successfully completed. Completion of the administrative process with the issuing of the ABE is expected shortly. We will send you the ABE automatically.
