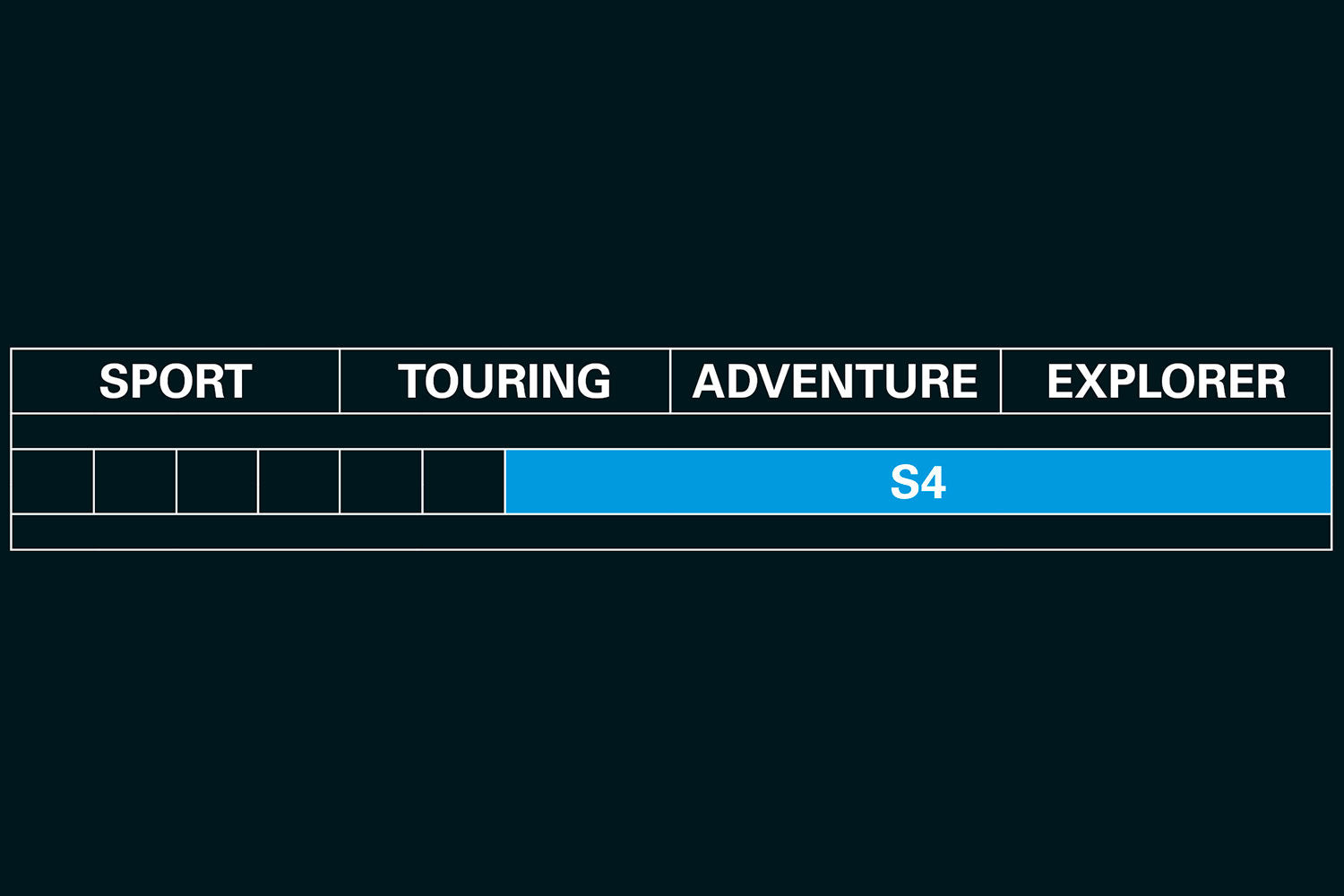

Wunderlich Suspension Shock absorber S4 PRO + HPA

Facts and product features of the Wunderlich Suspension powered by TracTive S4 PRO HPA shock absorbers

For extreme use: the PRO version. Extra-reinforced, latest-generation high-performance shock absorber as an upgrade or replacement for the standard suspension. Developed to meet the highest demands of ambitious adventure riders who frequently ride off-road, touring riders who regularly travel with high payloads, and riders seeking additional safety reserves. With PDS bottom-out protection system and hydraulic spring preload adjustment (HPA).

We individually select the spring rate based on your personal riding profile specifications.

• Damping characteristics
• Our shock absorbers are developed specifically for each vehicle and intended use, delivering high performance and impressive reserves
• The balanced, sensitive damping behaviour of our suspension components ensures neutral, predictable handling and strengthens confidence in your motorcycle – and therefore your riding enjoyment
• The shock absorbers impress with excellent, transparent feedback: they optimise tyre contact with the road surface, wheel guidance and directional stability, and reduce tyre wear

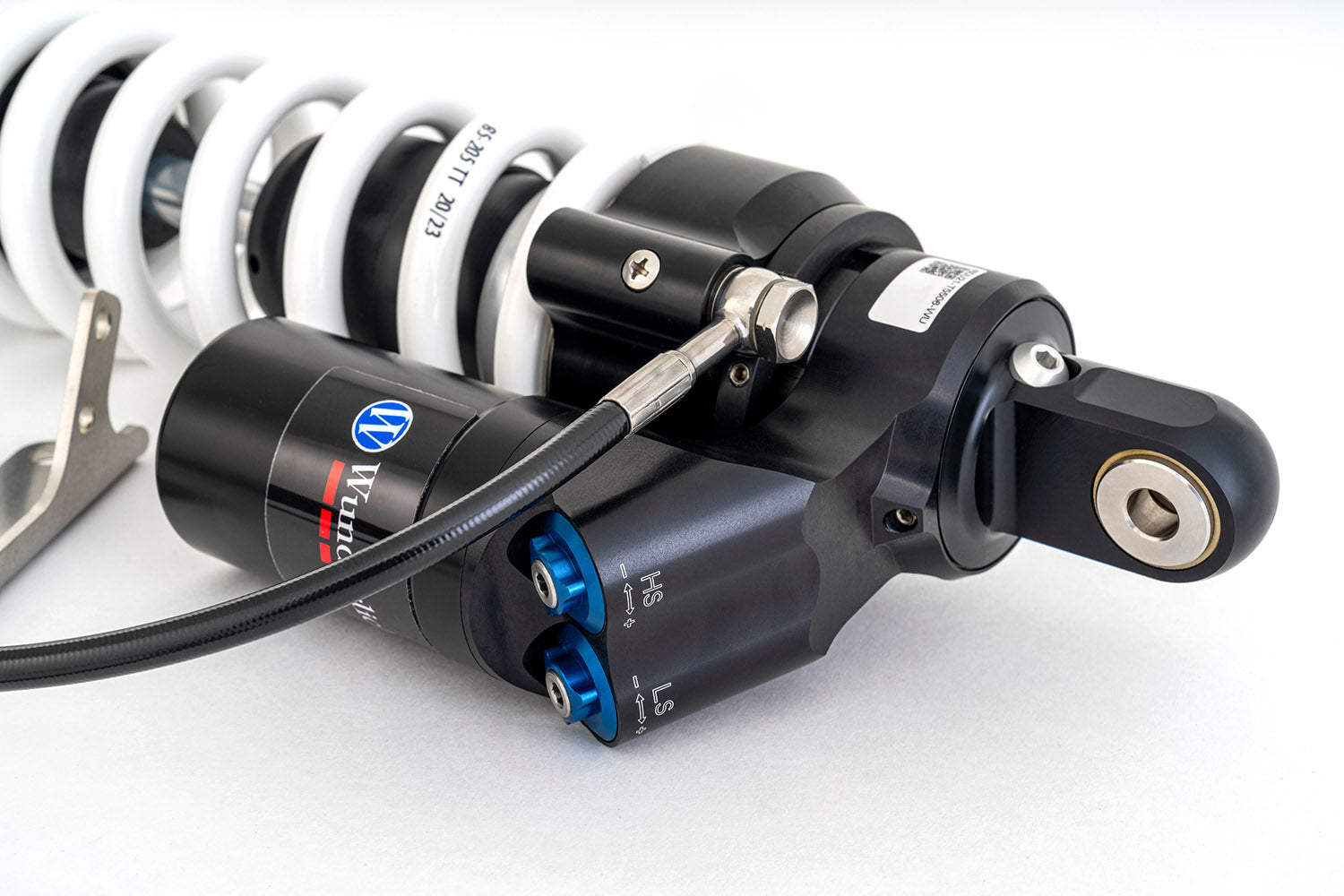

• Individual damping adjustment: the high-quality shock absorber features high- and low-speed compression adjustment, i.e. compression damping can be adjusted depending on the speed of the compression stroke (or the speed at which the damping piston moves during the stroke)
• Rebound adjustment with 18 clicks allows precise individual fine-tuning of the damping using the suspension tool
• The shock absorber is equipped with a so-called PDS system which, under hard use, reduces the risk of bottoming out and the associated loads caused by harsh impacts
• The PDS system, together with the extensive options for individual rebound and compression adjustment, meets the highest demands of adventure and touring riders. It noticeably increases comfort and safety and can help reduce stress on the frame
• To achieve optimum, sensitive response behaviour,
• the oil channels are generously dimensioned to minimise oil flow resistance
• we use large-diameter pistons (46 mm)
• as well as low-friction seals and special shim stacks
• These closed shock absorbers feature an external, forged aluminium reservoir that supports the system’s thermal stability and performance through optimal heat dissipation
• The generously dimensioned oil volume and large cooling surface ensure
• a low, optimal operating oil temperature,
• which not only guarantees stable high-level performance,
• but also extends the service life of both damper and oil

• Spring characteristics and preload

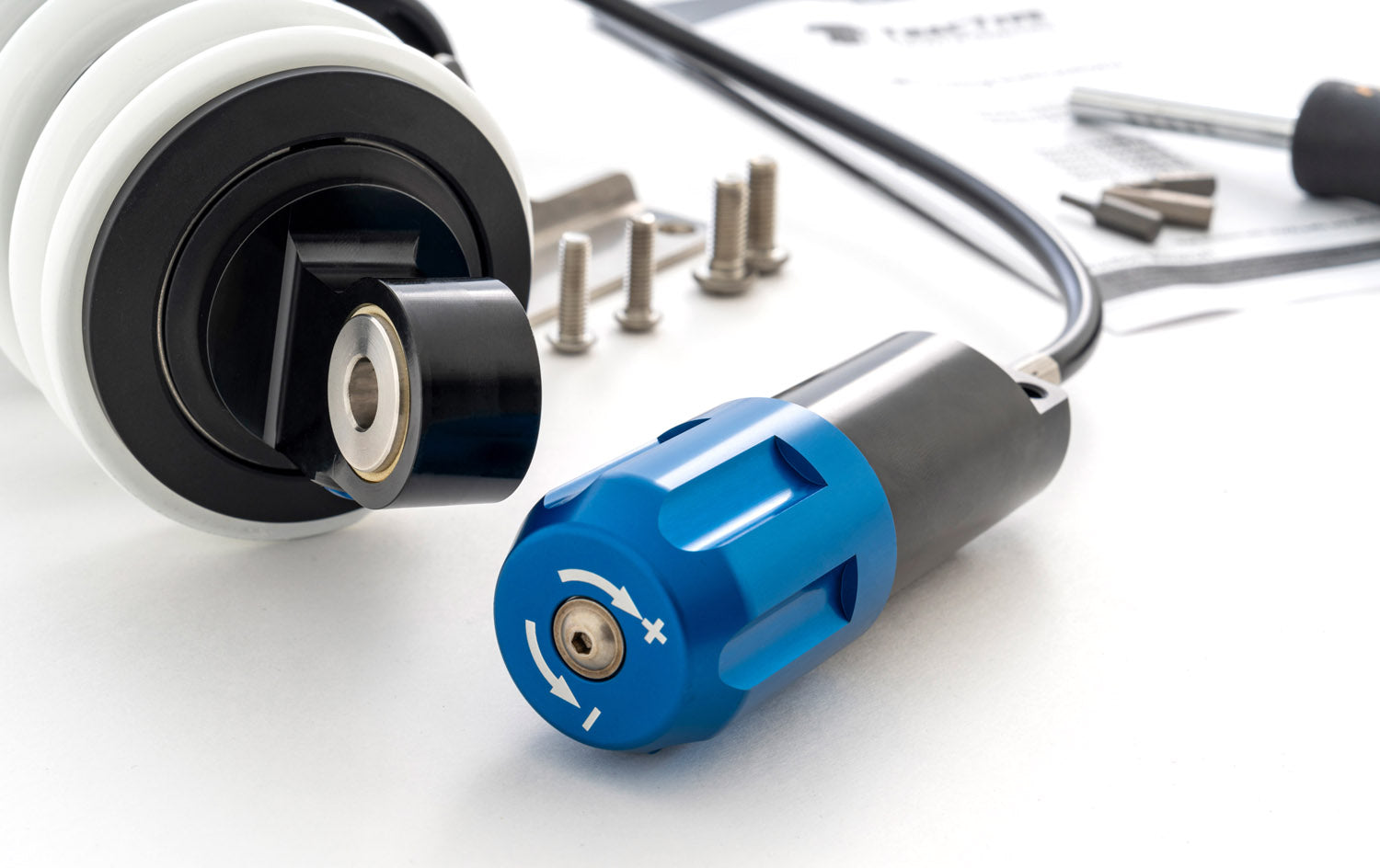

• Hydraulic spring preload: the shock absorber is equipped with an encapsulated, very robust hydraulic preload adjuster. Preload is set conveniently via an easily accessible handwheel. The robust preload adjustment mechanism withstands the toughest conditions
• The wide adjustment range compensates for a broad variety of load conditions

• PRO
• The PRO shock absorbers are the best shock absorbers for extreme use. They feature an even more robust design and their response is optimised through the selected components and reduced-friction seals. The following features characterise the PRO shock absorbers:
• Aluminium shock body
• Stainless steel bearing bushings
• Special seals with reduced friction and additional sealing (so-called back-up ring)

• Tuning
• Special Wunderlich Suspension tuning for adventure and touring riders with high demands on their suspension

• Customisation
• We individually select the spring rate based on your personal riding profile specifications: after choosing your shock absorber, you simply define your personal specifications during the ordering process – they form the basis for selecting the spring that suits you

• Maintenance
• Each shock absorber can be fully and professionally serviced at the Wunderlich Suspension Center

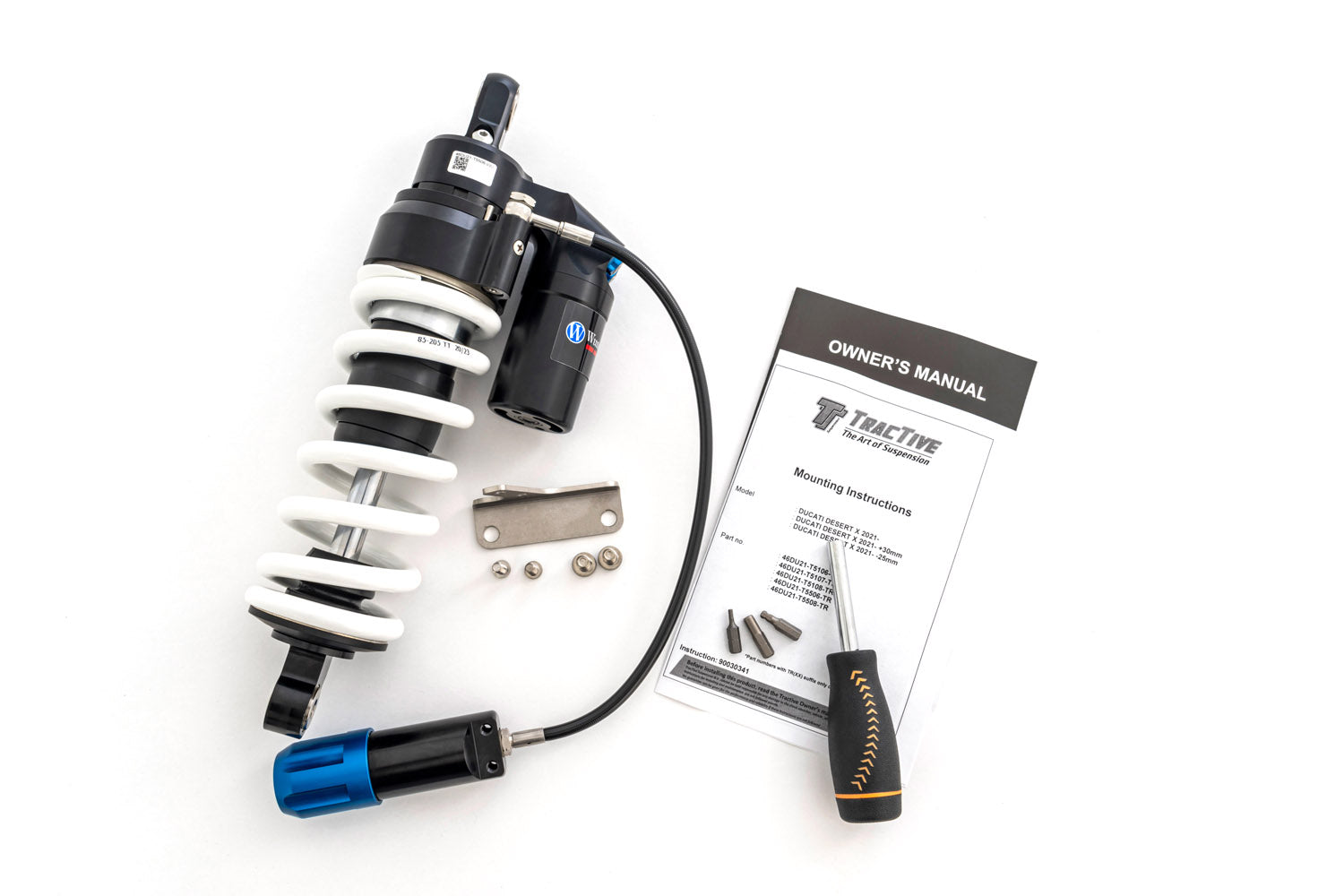

• The suspension tool is included in the scope of delivery

Technical data

• Material
• The shock absorber housings are precisely manufactured from high-quality aluminium
• Special features
• PRO specifications
• PDS system – reduces the risk of bottoming out
• Closed system
• Build quality
• We exclusively use highly durable components such as micro-machined, inductively hardened, heat-treated 42CrMo piston rods, premium-quality bearings and stainless steel bushings, as well as low-friction seals
• Dimensions
• Piston diameter: 46 mm
• Piston rod diameter: 16 mm
• Spring preload adjustment
• Hydraulic with handwheel (HPA)

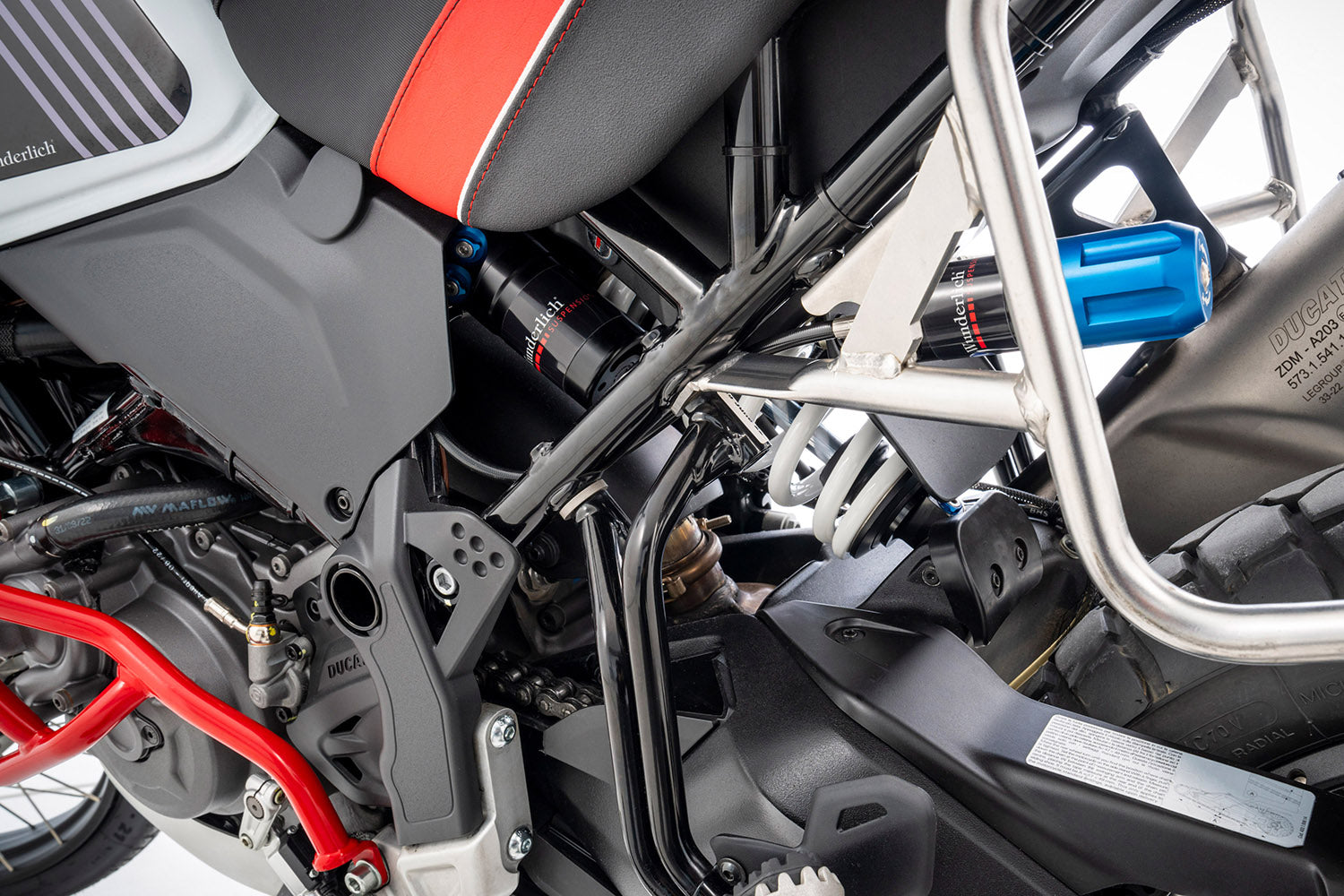

• Installation location
• Rear swingarm

Your Wunderlich advantages

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Tested by Wunderlich
• Made in Europe
• 5-year warranty when observing the 24-month service intervals
• With ABE*

*Testing by the technical service has been successfully completed. Finalisation of the administrative process and issue of the ABE is expected shortly. We will send you the ABE automatically.
